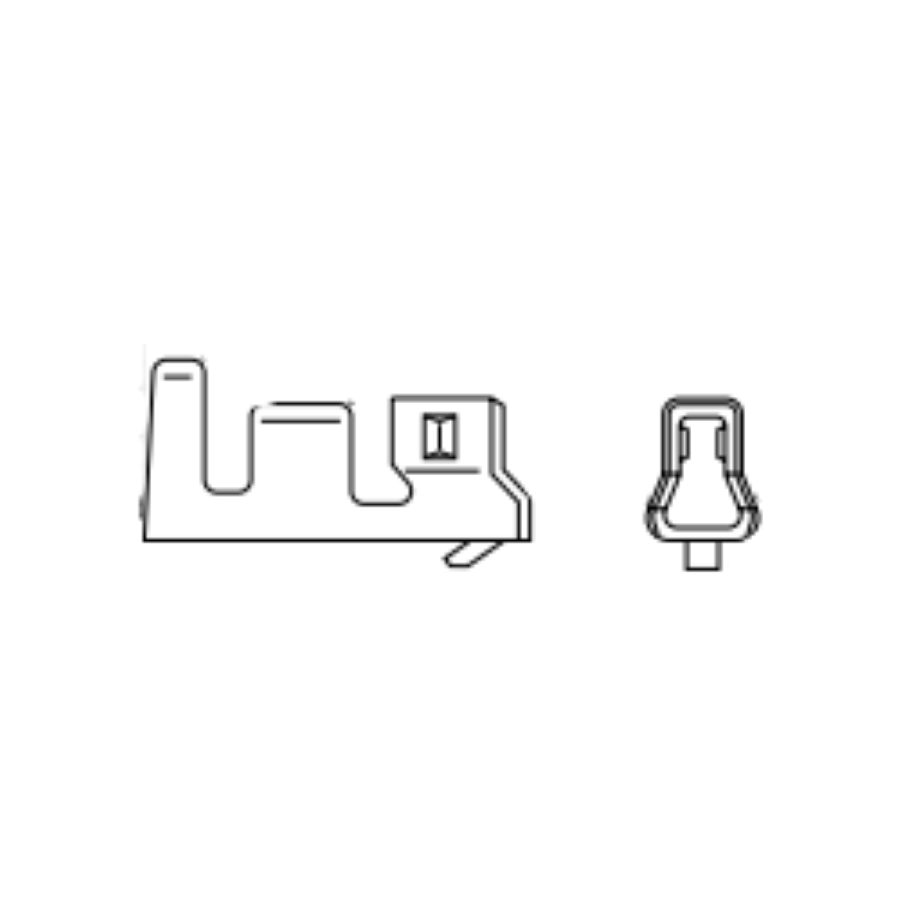

SZH-003T-P0.5
Manufacturer:
JST
Mfr.Part #:
SZH-003T-P0.5
Datasheet:
Description:
Terminals Cable, Socket 28 AWG Receptacle
| Parameter | Value |
|---|---|
| Length | 4 mm |
| Width | 6.35 mm |
| Termination | Crimp |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Voltage Rating (AC) | 50 V |
| Height | 6.35 mm |
| Packaging | Reel |
| Depth | 1.1 mm |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Bronze |
| Current Rating | 1 A |
| Max Current Rating | 7 A |
| Orientation | Straight |
| Gender | Receptacle |
| Wire/Cable Diameter | 900 µm |
| Wire/Cable Gauge | 28 AWG |
| Contact Resistance | 30 mΩ |
| Max Voltage Rating (AC) | 50 V |
| Wire Gauge (Max) | 32 AWG |
| Wire Gauge (Min) | 28 AWG |
| Termination Style | Crimp |
Stock: 7787
Distributors
pcbx
pcbxUnit Price$0.02590
Ext.Price$0.02590
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.02590 | $0.02590 |
| 10 | $0.01295 | $0.12950 |
| 50 | $0.00996 | $0.49800 |
| 100 | $0.00766 | $0.76600 |
| 500 | $0.00679 | $3.39500 |
| 1000 | $0.00601 | $6.01000 |
| 3000 | $0.00510 | $15.30000 |
| 5000 | $0.00476 | $23.80000 |
| 10000 | $0.00444 | $44.40000 |
| 30000 | $0.00414 | $124.20000 |
| 50000 | $0.00386 | $193.00000 |
