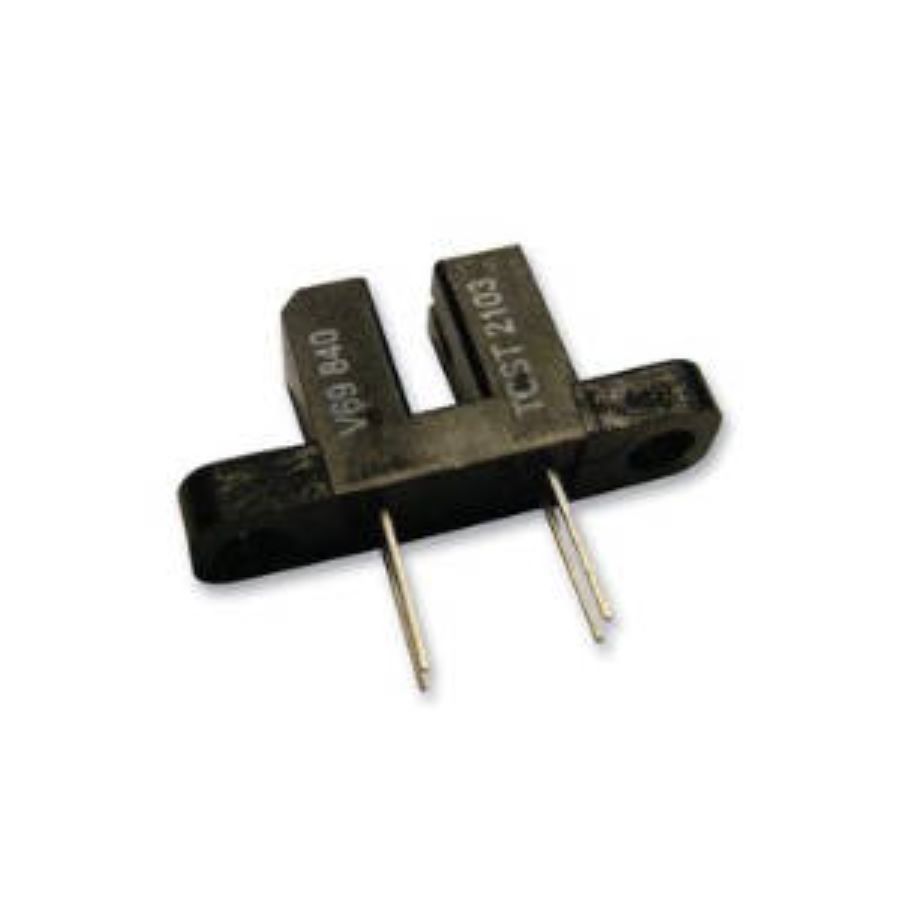

TCST2103
Manufacturer:
Vishay
Mfr.Part #:
TCST2103
Datasheet:
Description:
Optical Sensors 24.50mmL×6.30mmW×11.10mmH Through Hole Collector Emitter Breakdown Voltage:70 V Max Collector Current:100 mA 950 nm Phototransistor
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 1.25 V |
| Length | 24.5 mm |
| Width | 6.3 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 4 |
| Height | 10.8 mm |
| Packaging | Tube |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Silver |
| Number of Elements | 1 |
| Output Current | 100 mA |
| Output Voltage | 70 V |
| Forward Current | 60 mA |
| Forward Voltage | 1.25 V |
| Power Dissipation | 250 mW |
| Max Output Current | 100 mA |
| Response Time | 8 µs |
| Number of Channels | 1 |
| Max Collector Current | 100 mA |
| Collector Emitter Breakdown Voltage | 70 V |
| Output Configuration | Phototransistor |
| Rise Time | 10 µs |
| Wavelength | 950 nm |
| Collector Emitter Voltage (VCEO) | 70 V |
| Current Transfer Ratio | 20 % |
| Output Power | 100 mW |
| Input Current | 60 mA |
| Reverse Breakdown Voltage | 6 V |
| Sensing Distance | 3.1 mm |
| Reverse Voltage (DC) | 6 V |
Stock: 829
Distributors
pcbx
pcbxUnit Price$0.74464
Ext.Price$0.74464
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.74464 | $0.74464 |
| 10 | $0.55827 | $5.58270 |
| 25 | $0.54693 | $13.67325 |
| 50 | $0.53582 | $26.79100 |
| 100 | $0.52493 | $52.49300 |
| 300 | $0.50927 | $152.78100 |
| 500 | $0.49408 | $247.04000 |
| 1000 | $0.47934 | $479.34000 |
| 3000 | $0.46504 | $1395.12000 |
| 5000 | $0.45117 | $2255.85000 |
| 10000 | $0.43773 | $4377.30000 |
