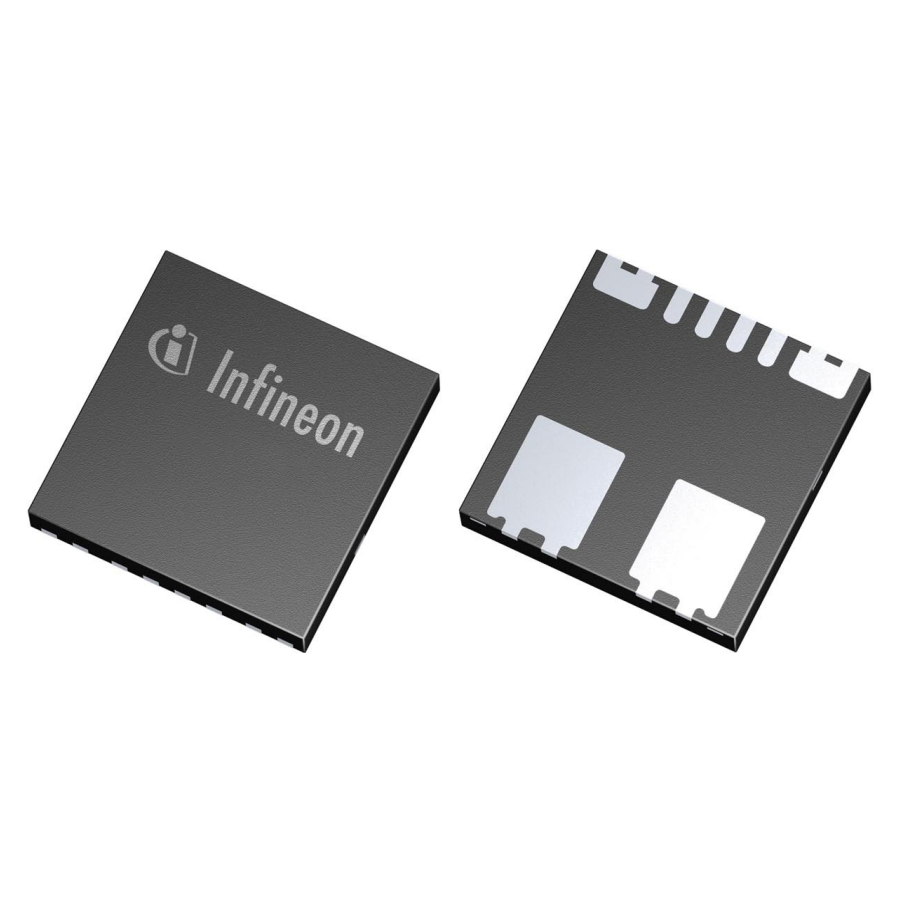

TLI4970D050T4XUMA1
Manufacturer:
Infineon
Mfr.Part #:
TLI4970D050T4XUMA1
Datasheet:
Description:
Current Sensors PowerTDFN-8 SMD/SMT Hall Effect, Differential 50 A
| Parameter | Value |
|---|---|
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 8 |
| Height | 1.05 mm |
| Packaging | Reel |
| Halogen Free | Halogen Free |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Polarity | Unidirectional |
| Frequency | 18 kHz |
| Type | Hall Effect, Differential |
| Current Rating | 50 A |
| Interface | SPI |
| Bandwidth | 18 kHz |
| Output Type | Digital |
| Lifecycle Status | Production (Last Updated: 10 months ago) |
| Max Supply Voltage | 3.5 V |
| Min Supply Voltage | 3.1 V |
| Accuracy | 1.6 °C |
| Linearity | 1.6 % |
| Ambient Temperature Range High | 85 °C |
| Response Time | 57 µs |
| Number of Channels | 1 |
| Operating Supply Current | 12 mA |
| Max Supply Current | 20 mA |
| Sensing Method | Hall Effect |
| Current Sensing | 50 A |
| Max Junction Temperature (Tj) | 125 °C |
| Schedule B | 8542390000 |
| Package Quantity | 2000 |
| Frequency Range | 0 Hz to 18 kHz |
