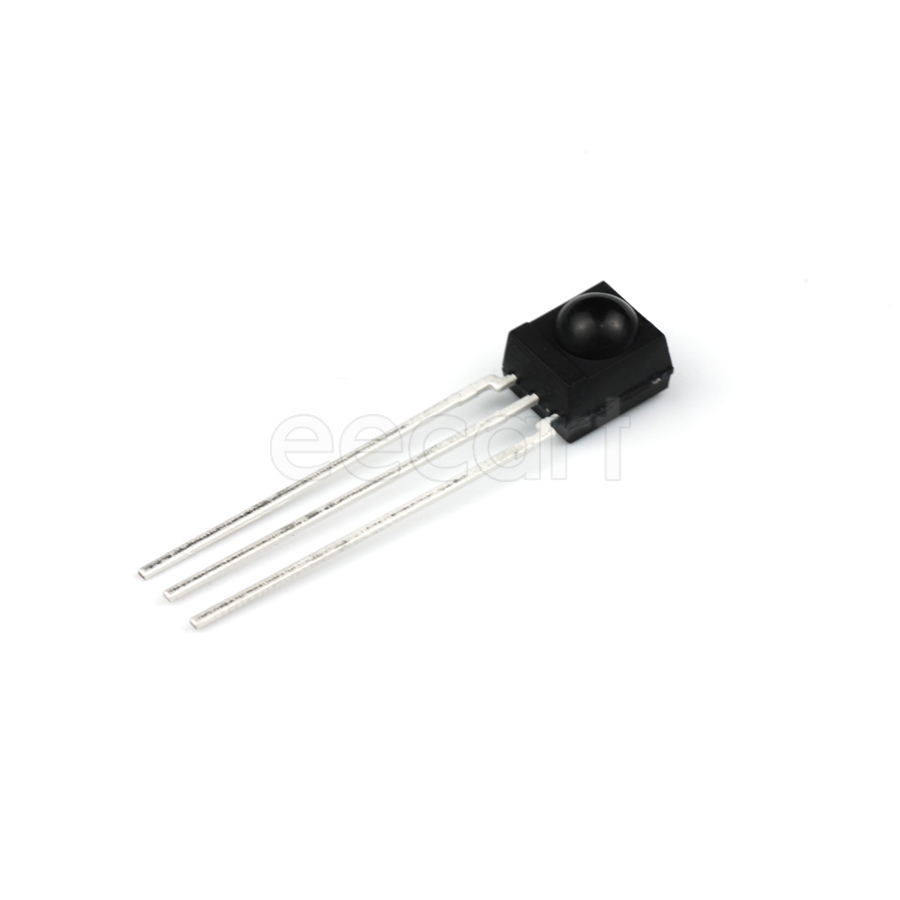

TSOP4838
Manufacturer:
Vishay
Mfr.Part #:
TSOP4838
Datasheet:
Description:
Optical Sensors Side Looker Through Hole 950 nm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 6 V |
| Length | 6 mm |
| Width | 6 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Number of Pins | 3 |
| Height | 6.95 mm |
| Packaging | Tube |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Lead Length | 23.55 mm |
| Frequency | 38 kHz |
| Output Current | 5 mA |
| Output Voltage | 6 V |
| Orientation | Side View |
| Max Power Dissipation | 10 mW |
| Max Supply Voltage | 5.5 V |
| Min Supply Voltage | 2.5 V |
| Power Dissipation | 10 mW |
| Max Supply Voltage (DC) | 5.5 V |
| Operating Supply Current | 700 µA |
| Max Supply Current | 5 mA |
| Nominal Supply Current | 950 µA |
| Viewing Angle | 45 ° |
| Wavelength | 950 nm |
| Min Supply Voltage (DC) | 2.5 V |
| Sensing Distance | 45 m |
| Min Output Voltage | 100 mV |
| Reverse Voltage (DC) | 6 V |
| Schedule B | 8541409500 |
Stock: 938
Distributors
pcbx
pcbxUnit Price$1.10755
Ext.Price$1.10755
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.10755 | $1.10755 |
| 10 | $0.92170 | $9.21700 |
| 25 | $0.83617 | $20.90425 |
| 50 | $0.75858 | $37.92900 |
| 100 | $0.68819 | $68.81900 |
| 300 | $0.62433 | $187.29900 |
| 500 | $0.56638 | $283.19000 |
