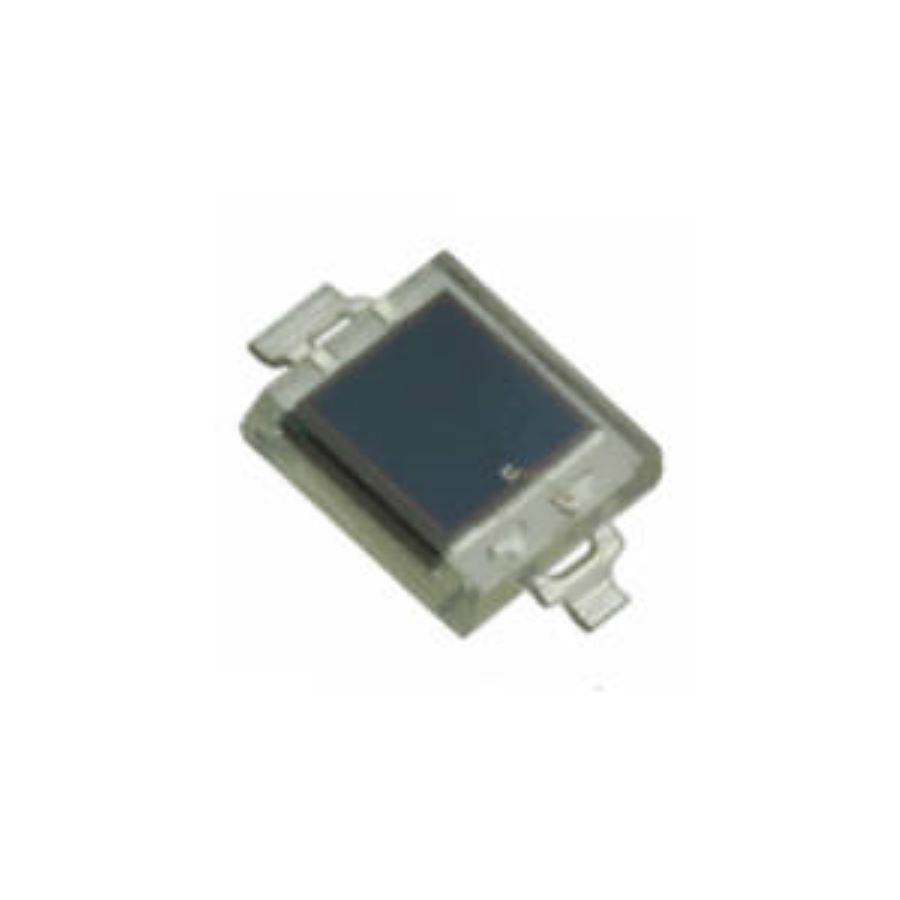

VBPW34S
Manufacturer:
Vishay
Mfr.Part #:
VBPW34S
Datasheet:
Description:
Photodiodes SMD SMD/SMT 940 nm PIN Rise Time:100 ns Fall Time :100 ns Response Time:100 ns
| Parameter | Value |
|---|---|
| Length | 4.4 mm |
| Width | 3.9 mm |
| Max Operating Temperature | 100 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Height | 1.2 mm |
| Packaging | Reel |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Forward Current | 50 mA |
| Forward Voltage | 1.3 V |
| Max Power Dissipation | 215 mW |
| Power Dissipation | 215 mW |
| Response Time | 100 ns |
| Max Reverse Voltage (DC) | 60 V |
| Breakdown Voltage | 60 V |
| Fall Time | 100 ns |
| Rise Time | 100 ns |
| Viewing Angle | 130 ° |
| Wavelength | 940 nm |
| Dark Current | 2 nA |
| Reverse Breakdown Voltage | 60 V |
| Diode Type | PIN |
| Reverse Voltage (DC) | 60 V |
| Schedule B | 8541406010 |
Stock: 16276
Distributors
pcbx
pcbxUnit Price$0.55546
Ext.Price$0.55546
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.55546 | $0.55546 |
| 10 | $0.44822 | $4.48220 |
| 25 | $0.41243 | $10.31075 |
| 50 | $0.37950 | $18.97500 |
| 100 | $0.34920 | $34.92000 |
| 300 | $0.31390 | $94.17000 |
| 500 | $0.28217 | $141.08500 |
| 1000 | $0.26694 | $266.94000 |
