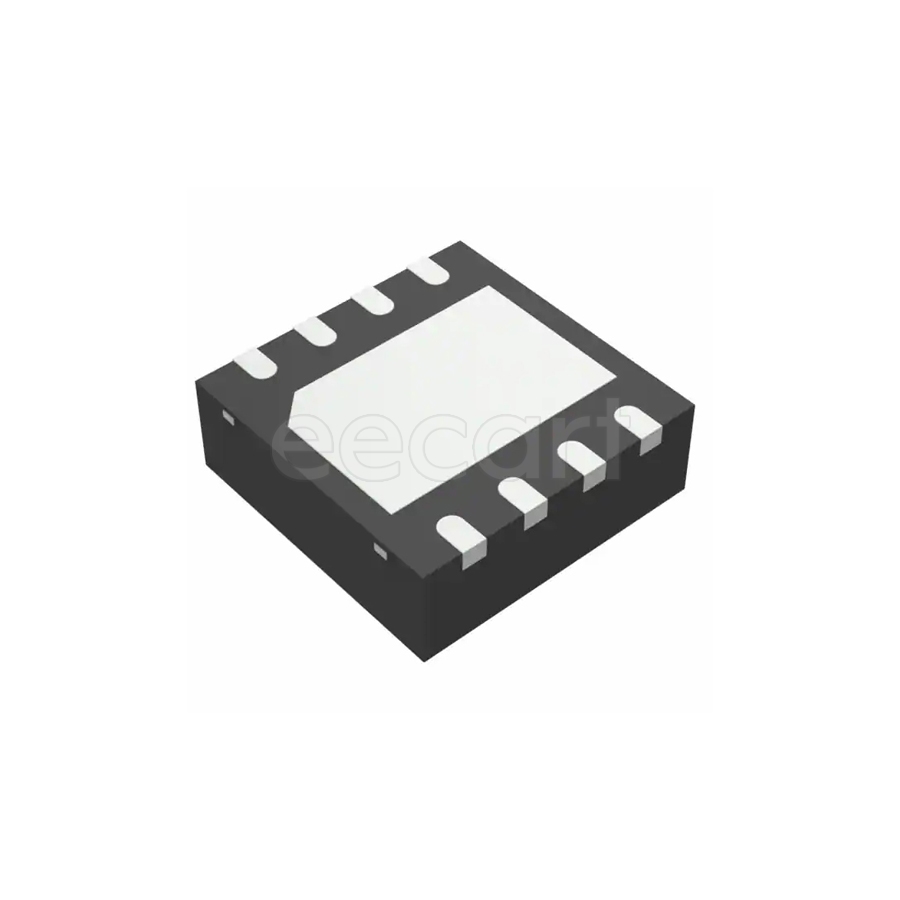

VSOP38338
Manufacturer:
Vishay
Mfr.Part #:
VSOP38338
Datasheet:
Description:
Optical Sensors VSOP-8 SMD/SMT
| Parameter | Value |
|---|---|
| Length | 2 mm |
| Width | 2 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Number of Pins | 8 |
| Height | 760 µm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| REACH SVHC | Unknown |
| Output Current | 5 mA |
| Bandwidth | 38 kHz |
| Max Supply Voltage | 5.5 V |
| Min Supply Voltage | 2.5 V |
| Power Dissipation | 10 mW |
| Operating Supply Current | 3 mA |
| Nominal Supply Current | 450 µA |
| Min Output Voltage | -250 mV |
| Schedule B | 8541409500 |
| RoHS | Compliant |
| Packaging | Reel |
Stock: 1643
Distributors
pcbx
pcbxUnit Price$0.71280
Ext.Price$0.71280
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.71280 | $0.71280 |
| 10 | $0.56573 | $5.65730 |
| 25 | $0.51344 | $12.83600 |
| 50 | $0.46598 | $23.29900 |
| 100 | $0.42292 | $42.29200 |
| 300 | $0.40009 | $120.02700 |
| 500 | $0.37849 | $189.24500 |
| 1000 | $0.35551 | $355.51000 |
