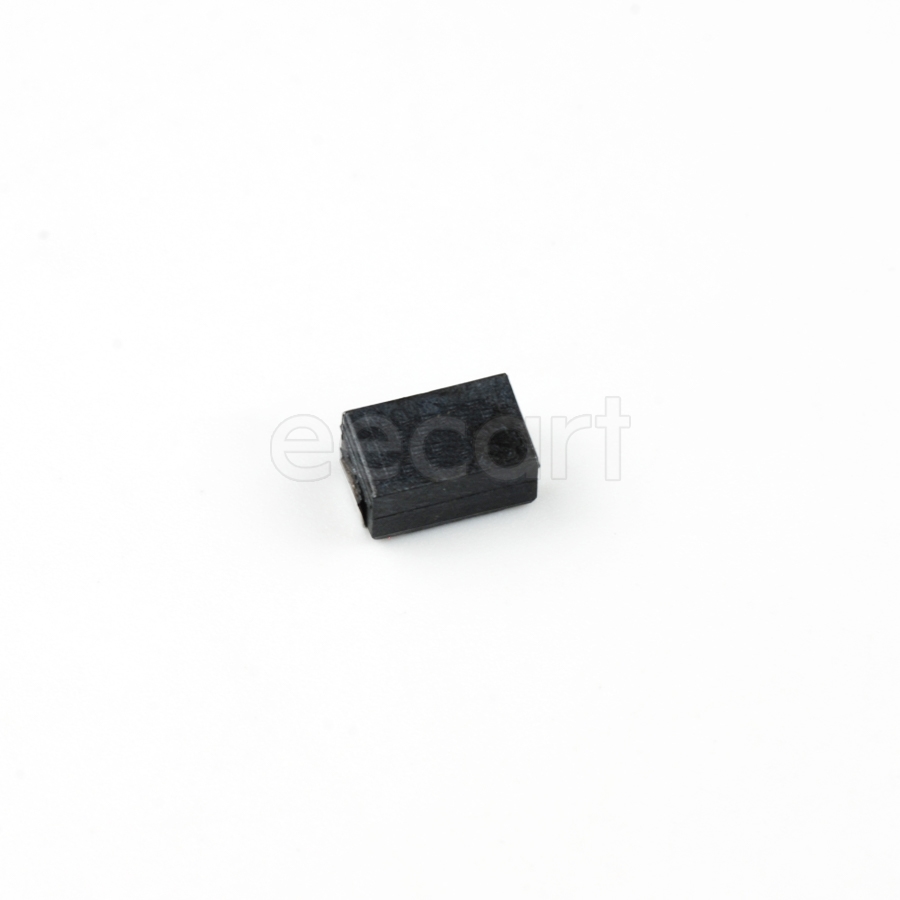

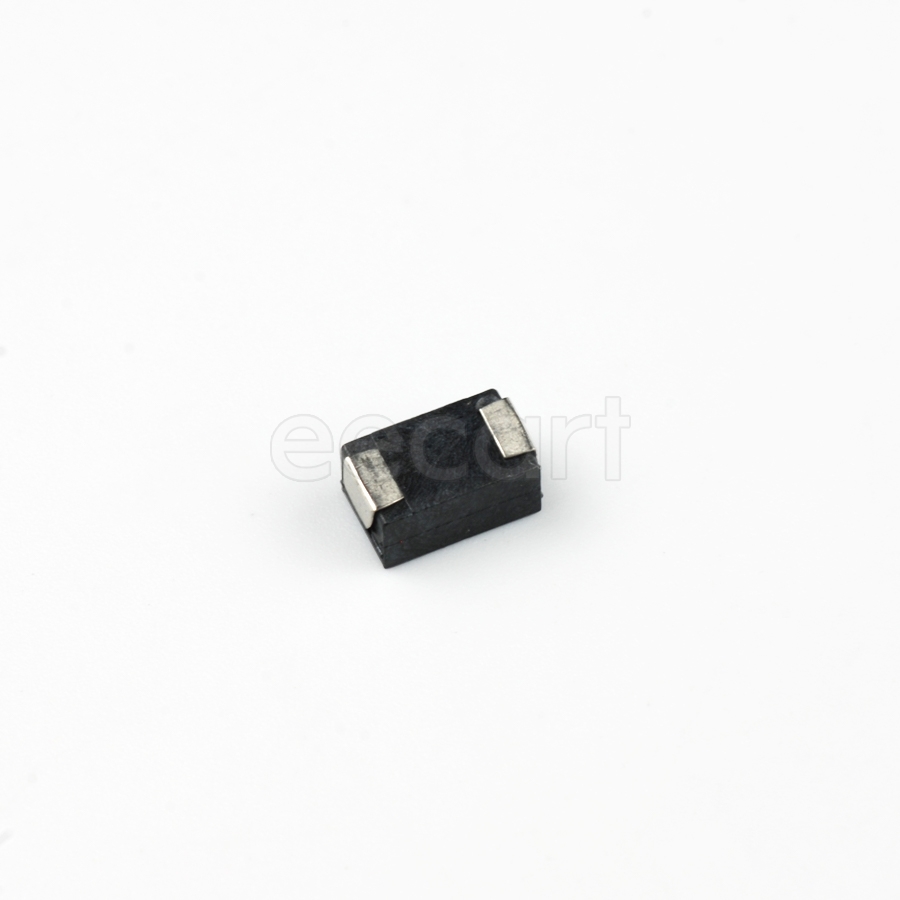

WSC25152K000FEA
Manufacturer:
Vishay
Mfr.Part #:
WSC25152K000FEA
Datasheet:
Description:
Chip SMD Resistors 2515(6438 Metric) SMD/SMT Wirewound 2 kΩ 1 % 1 W 20 ppm/°C
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 1.41 V |
| Tolerance | 1 % |
| Length | 6.4 mm |
| Width | 3.8 mm |
| Max Operating Temperature | 275 °C |
| Min Operating Temperature | -65 °C |
| Case Code (Imperial) | 2515 |
| Case Code (Metric) | 6438 |
| Number of Pins | 2 |
| Resistance | 2 kΩ |
| Power Rating | 1 W |
| Composition(Kit Type) | Wirewound |
| Temperature Coefficient | 20 ppm/°C |
| Height | 1.14 mm |
| Packaging | Reel |
| Voltage Rating | 44.7 V |
| Depth | 3.81 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Military Standard | Not |
| Schedule B | 8533210045 |
| Height - Seated (Max) | 3.17 mm |
Stock: 2071
Distributors
pcbx
pcbxUnit Price$1.56452
Ext.Price$1.56452
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.56452 | $1.56452 |
| 10 | $1.04473 | $10.44730 |
| 25 | $0.81390 | $20.34750 |
| 50 | $0.77536 | $38.76800 |
| 100 | $0.73866 | $73.86600 |
| 300 | $0.66629 | $199.88700 |
| 500 | $0.60101 | $300.50500 |
| 1000 | $0.50270 | $502.70000 |
| 3000 | $0.48174 | $1445.22000 |
| 5000 | $0.46166 | $2308.30000 |
