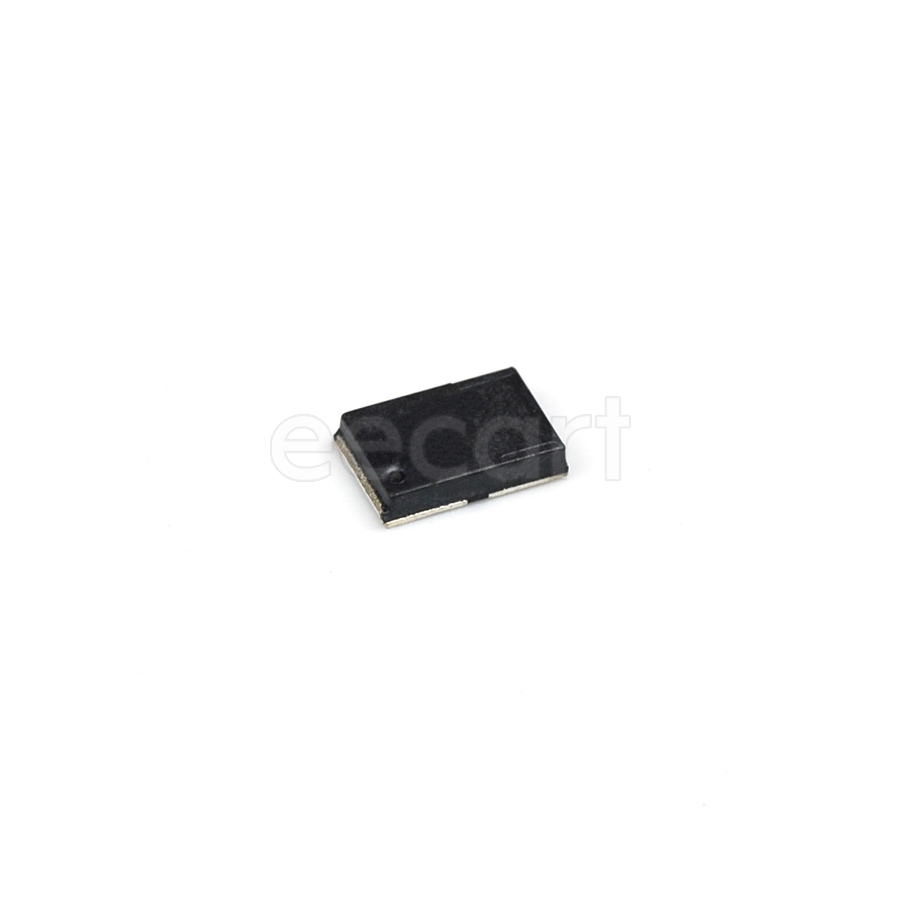

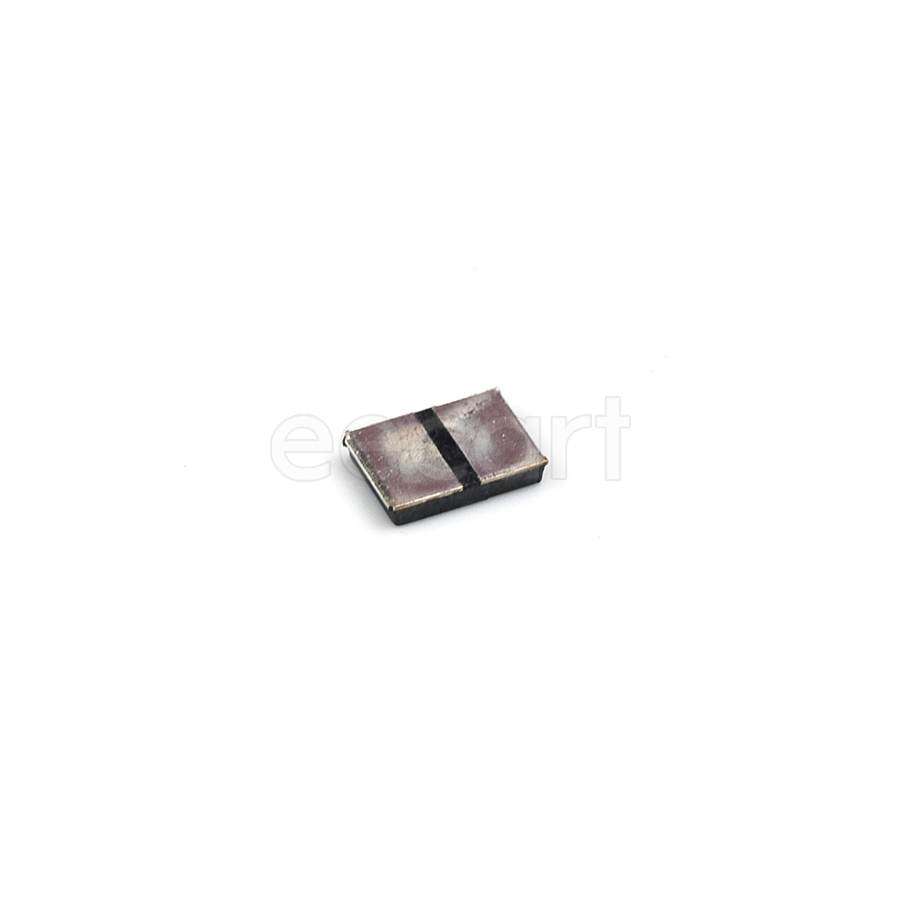

WSHM2818R0100FEA
Manufacturer:
Vishay
Mfr.Part #:
WSHM2818R0100FEA
Datasheet:
Description:
Chip SMD Resistors 2818(7146 Metric) SMD/SMT Metal Element 10 mΩ 1 % 5 W 75 ppm/°C
| Parameter | Value |
|---|---|
| Tolerance | 1 % |
| Length | 7.112 mm |
| Width | 4.5974 mm |
| Max Operating Temperature | 170 °C |
| Min Operating Temperature | -65 °C |
| Resistance | 10 mΩ |
| Power Rating | 5 W |
| Composition(Kit Type) | Metal Element |
| Temperature Coefficient | 75 ppm/°C |
| Height | 1.7526 mm |
| Packaging | Reel |
| RoHS | Compliant |
| Features | Automotive AEC-Q200, Moisture Resistant |
| Max Power Dissipation | 7 W |
| Number of Terminations | 2 |
| Schedule B | 8533210045 |
| Height - Seated (Max) | 1.75 mm |
Stock: 1667
Distributors
pcbx
pcbxUnit Price$1.50442
Ext.Price$1.50442
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.50442 | $1.50442 |
| 10 | $1.21018 | $12.10180 |
| 25 | $1.07332 | $26.83300 |
| 50 | $0.95194 | $47.59700 |
| 100 | $0.84429 | $84.42900 |
| 300 | $0.80027 | $240.08100 |
| 500 | $0.75854 | $379.27000 |
| 1000 | $0.72023 | $720.23000 |
