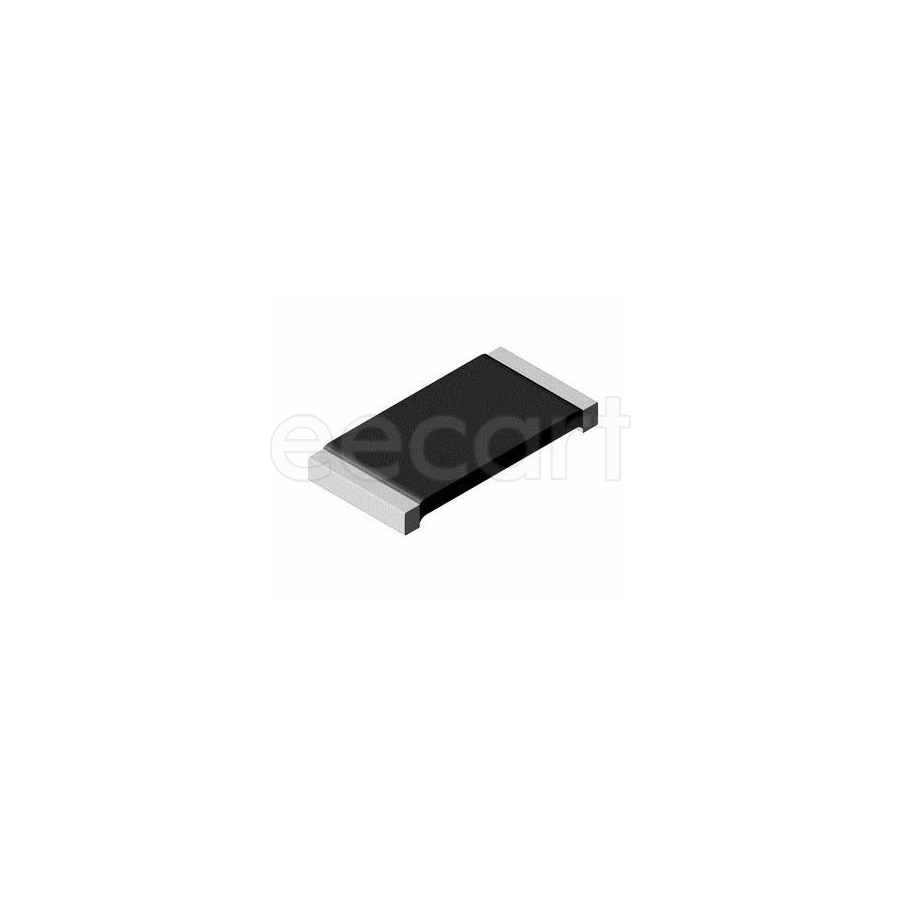

WSL2816R0200FEH
Manufacturer:
Vishay
Mfr.Part #:
WSL2816R0200FEH
Datasheet:
Description:
Chip SMD Resistors 2816(7142 Metric) SMD/SMT Metal Element, Metal Strip 20 MΩ 1 % 2 W 75 ppm/°C
| Parameter | Value |
|---|---|
| Tolerance | 1 % |
| Length | 7.1 mm |
| Width | 4.191 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 170 °C |
| Min Operating Temperature | -65 °C |
| Case Code (Imperial) | 2816 |
| Case Code (Metric) | 7142 |
| Resistance | 20 MΩ |
| Power Rating | 2 W |
| Composition(Kit Type) | Metal Element, Metal Strip |
| Temperature Coefficient | 75 ppm/°C |
| Height | 889 µm |
| Packaging | Reel |
| Depth | 4.2 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Tin |
| Features | Moisture Resistant |
| Military Standard | Not |
| Max Power Dissipation | 2 W |
| Number of Terminations | 2 |
| Schedule B | 8533210045 |
| Height - Seated (Max) | 0.89 mm |
Stock: 45
Distributors
pcbx
pcbxUnit Price$0.71280
Ext.Price$0.71280
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.71280 | $0.71280 |
| 10 | $0.59626 | $5.96260 |
| 25 | $0.55592 | $13.89800 |
| 50 | $0.51831 | $25.91550 |
| 100 | $0.48325 | $48.32500 |
| 300 | $0.43155 | $129.46500 |
| 500 | $0.38538 | $192.69000 |
| 1000 | $0.36705 | $367.05000 |
