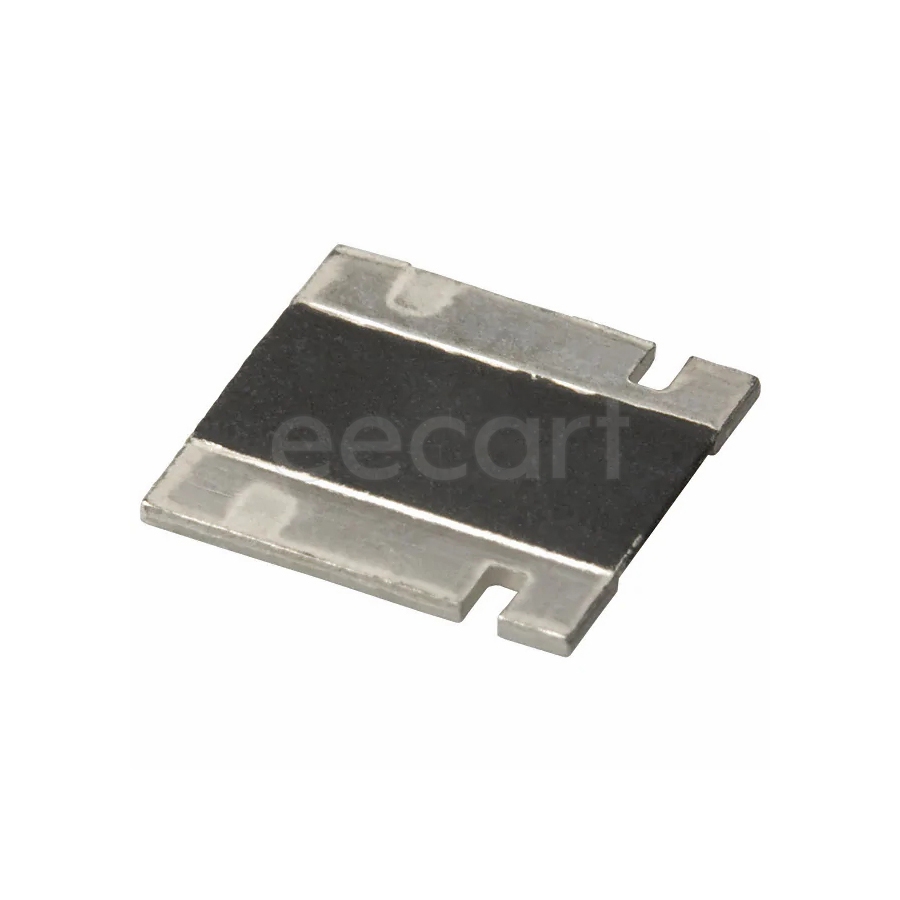

WSL3637R0100FEA
Manufacturer:
Vishay
Mfr.Part #:
WSL3637R0100FEA
Datasheet:
Description:
Chip SMD Resistors 3637(9194 Metric) SMD/SMT Metal Element 10 mΩ 1 % 3 W 50 ppm/°C
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 170 mV |
| Tolerance | 1 % |
| Length | 9.14 mm |
| Width | 9.398 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 170 °C |
| Min Operating Temperature | -65 °C |
| Case Code (Imperial) | 3637 |
| Case Code (Metric) | 9194 |
| Number of Pins | 2 |
| Resistance | 10 mΩ |
| Power Rating | 3 W |
| Composition(Kit Type) | Metal Element |
| Temperature Coefficient | 50 ppm/°C |
| Height | 889 µm |
| Packaging | Reel |
| Voltage Rating | 0.17 V (170 mV) |
| Depth | 9.4 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Weight | 274.309986 mg |
| Contact Plating | Tin |
| Features | Automotive AEC-Q200, Moisture Resistant |
| Military Standard | Not |
| Max Power Dissipation | 3 W |
| Number of Terminations | 4 |
| Schedule B | 8533210025 |
| Height - Seated (Max) | 0.89 mm |
Stock: 5600
Distributors
pcbx
pcbxUnit Price$1.01822
Ext.Price$1.01822
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.01822 | $1.01822 |
| 10 | $0.67710 | $6.77100 |
| 25 | $0.51809 | $12.95225 |
| 50 | $0.49177 | $24.58850 |
| 100 | $0.46679 | $46.67900 |
| 300 | $0.41951 | $125.85300 |
| 500 | $0.37703 | $188.51500 |
| 1000 | $0.34796 | $347.96000 |
| 3000 | $0.33842 | $1015.26000 |
| 5000 | $0.32915 | $1645.75000 |
