WSLP2726L5000FEA
Manufacturer:
Vishay
Mfr.Part #:
WSLP2726L5000FEA
Datasheet:
Description:

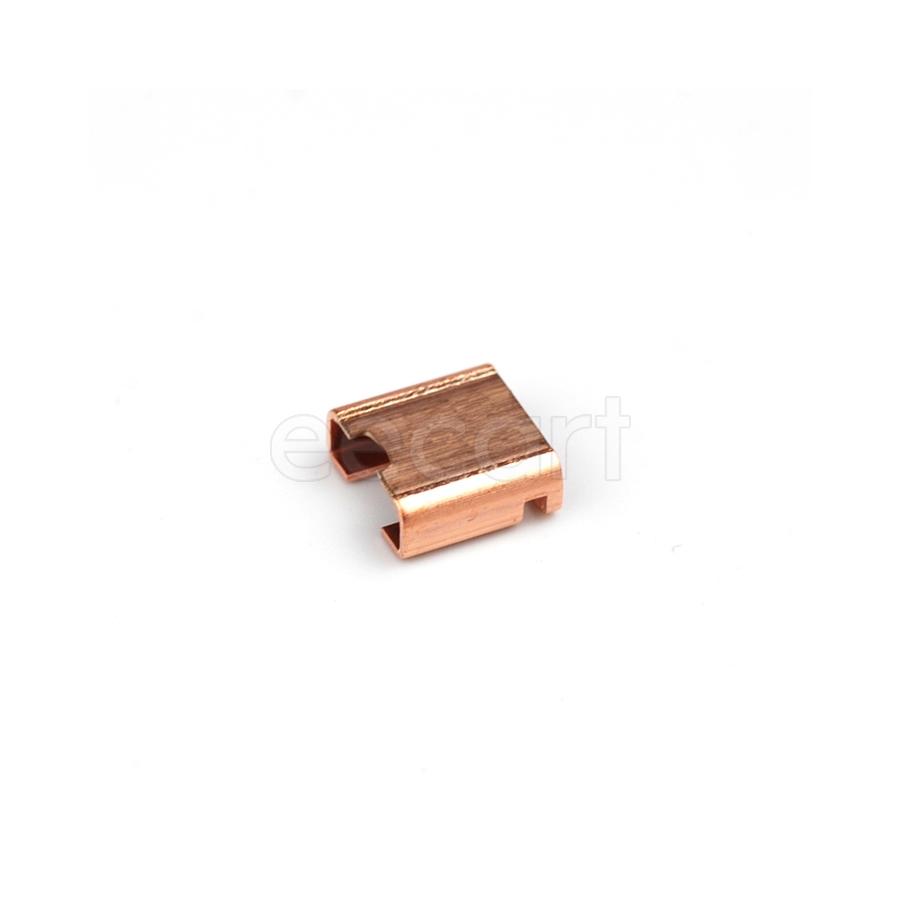

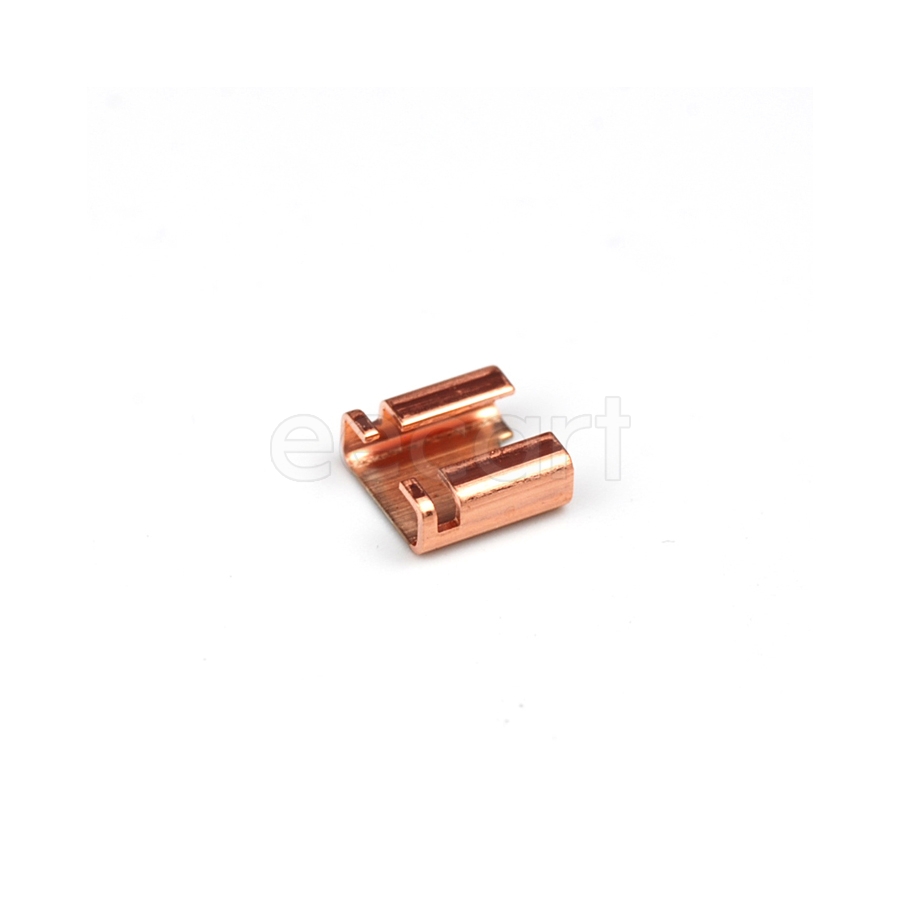

Chip SMD Resistors 2726(6966 Metric) SMD/SMT Metal Strip 500 µΩ 1 % 7 W 75 ppm/°C
| Parameter | Value |
|---|---|
| Tolerance | 1 % |
| Length | 6.9088 mm |
| Width | 6.6 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 170 °C |
| Min Operating Temperature | -65 °C |
| Case Code (Imperial) | 2726 |
| Case Code (Metric) | 6966 |
| Resistance | 500 µΩ |
| Power Rating | 7 W |
| Composition(Kit Type) | Metal Strip |
| Temperature Coefficient | 75 ppm/°C |
| Height | 3.1496 mm |
| Packaging | Reel |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Features | Moisture Resistant |
| Max Power Dissipation | 7 W |
| Number of Terminations | 4 |
| Schedule B | 8533210025 |
| Height - Seated (Max) | 3.15 mm |
Stock: 91
Distributors
pcbx
pcbxUnit Price$1.33776
Ext.Price$1.33776
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.33776 | $1.33776 |
| 10 | $1.11072 | $11.10720 |
| 25 | $1.01785 | $25.44625 |
| 50 | $0.93275 | $46.63750 |
| 100 | $0.85476 | $85.47600 |
| 300 | $0.82283 | $246.84900 |
| 500 | $0.79210 | $396.05000 |
| 1000 | $0.76300 | $763.00000 |
