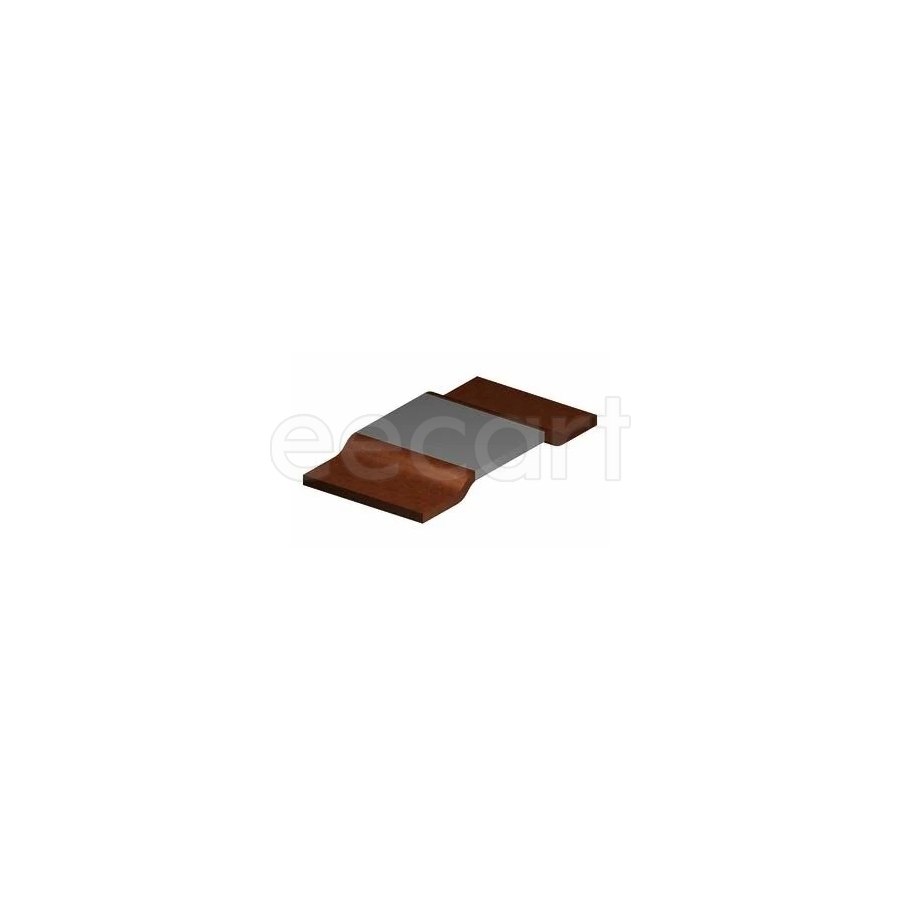

WSLP5931L5000FEB
Manufacturer:
Vishay
Mfr.Part #:
WSLP5931L5000FEB
Datasheet:
Description:
Chip SMD Resistors 5931(15078 Metric) SMD/SMT Metal Element, Metal Strip 500 µΩ 1 % 7 W 175 ppm/°C
| Parameter | Value |
|---|---|
| Tolerance | 1 % |
| Height - Seated (Max) | 0.51 mm |
| Length | 15.0114 mm |
| Width | 7.747 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 170 °C |
| Min Operating Temperature | -65 °C |
| Case Code (Imperial) | 5931 |
| Resistance | 500 µΩ |
| Power Rating | 7 W |
| Composition(Kit Type) | Metal Element, Metal Strip |
| Temperature Coefficient | 175 ppm/°C |
| Height | 500 µm |
| RoHS | Compliant |
| Features | Automotive AEC-Q200, Moisture Resistant |
| Max Power Dissipation | 10 W |
| Number of Terminations | 2 |
| Schedule B | 8533210045 |
| Packaging | Reel |
Stock: 554
Distributors
pcbx
pcbxUnit Price$1.70217
Ext.Price$1.70217
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.70217 | $1.70217 |
| 10 | $1.20801 | $12.08010 |
| 25 | $1.07636 | $26.90900 |
| 50 | $0.98916 | $49.45800 |
| 100 | $0.91990 | $91.99000 |
| 300 | $0.85522 | $256.56600 |
| 500 | $0.79509 | $397.54500 |
| 1000 | $0.75747 | $757.47000 |
