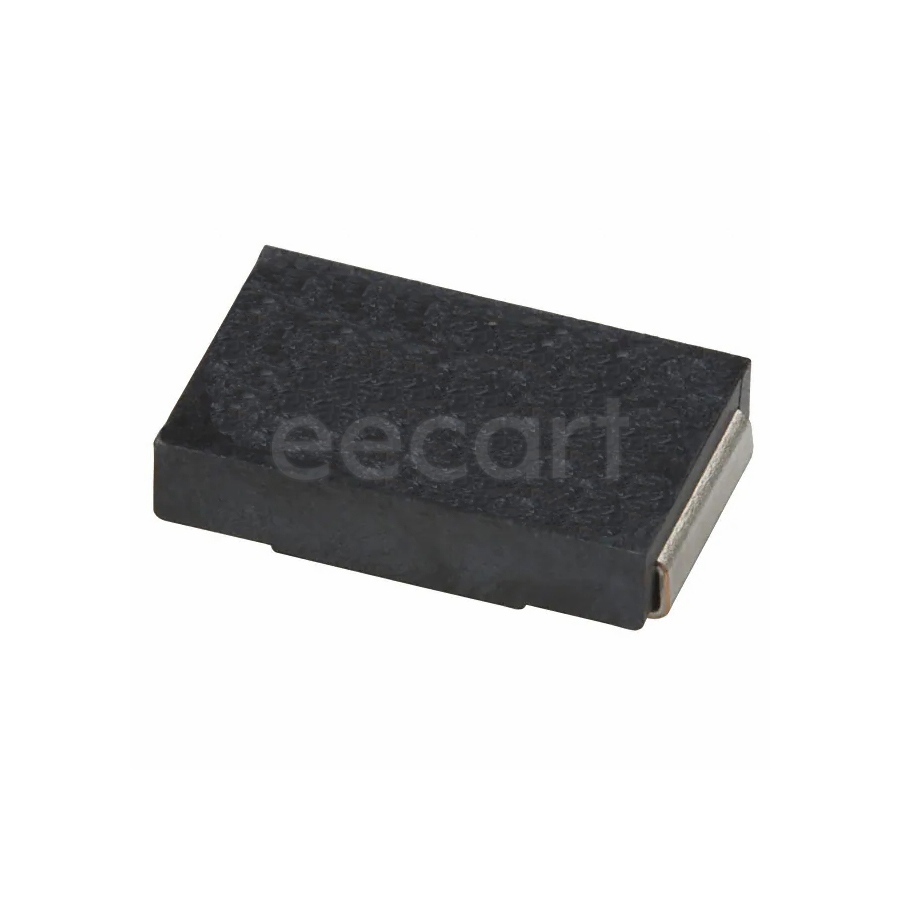

WSR3R2000FEA
Manufacturer:
Vishay
Mfr.Part #:
WSR3R2000FEA
Datasheet:
Description:
Chip SMD Resistors 4527(11570 Metric) SMD/SMT Metal Element, Metal Strip 200 mΩ 1 % 3 W 75 ppm/°C
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 770 mV |
| Tolerance | 1 % |
| Length | 11.56 mm |
| Width | 6.985 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 275 °C |
| Min Operating Temperature | -65 °C |
| Case Code (Imperial) | 4527 |
| Resistance | 200 mΩ |
| Power Rating | 3 W |
| Composition(Kit Type) | Metal Element, Metal Strip |
| Temperature Coefficient | 75 ppm/°C |
| Height | 2.41 mm |
| Packaging | Reel |
| Depth | 6.98 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Weight | 0.5102 mg |
| Contact Plating | Tin, Silver |
| Features | Automotive AEC-Q200, Moisture Resistant |
| Military Standard | Not |
| Max Power Dissipation | 3 W |
| Number of Terminations | 2 |
| Schedule B | 8533210045 |
| Height - Seated (Max) | 2.54 mm |
Stock: 1
Distributors
pcbx
pcbxUnit Price$0.97766
Ext.Price$0.97766
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.97766 | $0.97766 |
| 10 | $0.82128 | $8.21280 |
| 25 | $0.75733 | $18.93325 |
| 50 | $0.69836 | $34.91800 |
| 100 | $0.64398 | $64.39800 |
| 300 | $0.62162 | $186.48600 |
| 500 | $0.60004 | $300.02000 |
| 1000 | $0.57958 | $579.58000 |
