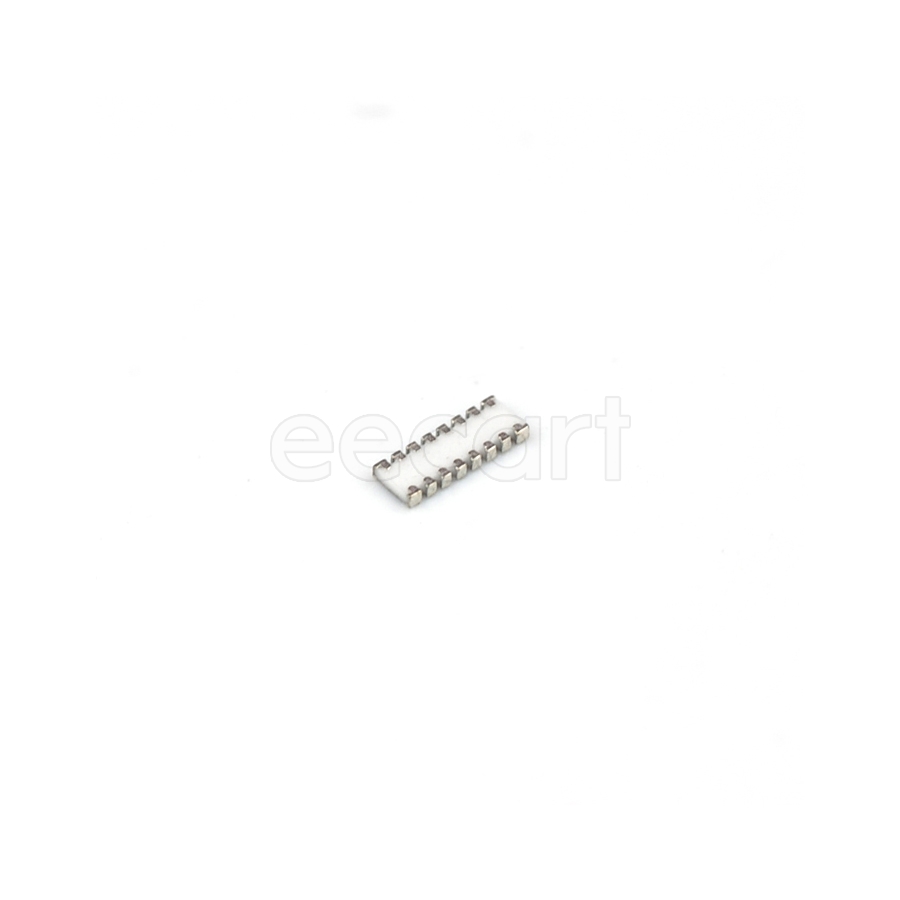

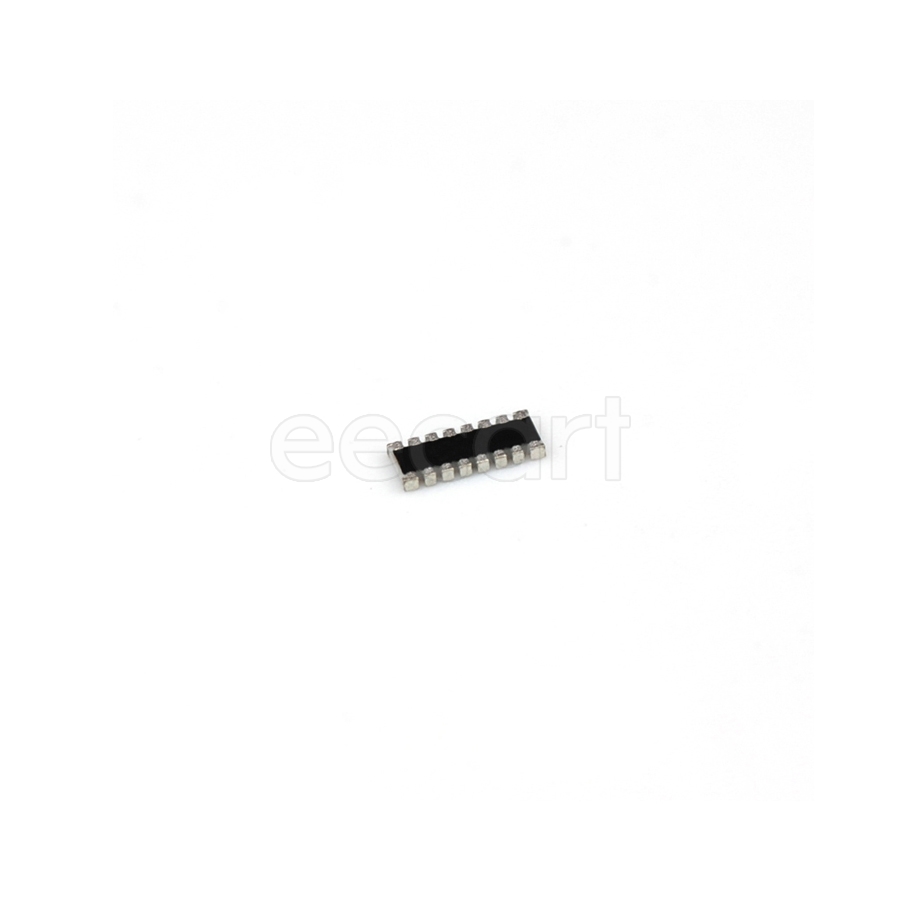

YC248-JR-07100RL
Manufacturer:
Yageo
Mfr.Part #:
YC248-JR-07100RL
Datasheet:
Description:
Resistor Arrays 1606(4016 Metric) SMD/SMT 100 Ω 5 % Number of Resistors:8 Circuit Type:Isolated
| Parameter | Value |
|---|---|
| Number of Elements | 8 |
| Number of Circuits | 8 |
| Lead Free | Lead Free |
| Power Dissipation | 16 W |
| Power Rating | 62.5 mW |
| Terminal Pitch | 500 µm |
| Power Per Element | 62.5 mW(1/16 W) |
| Number of Resistors | 8 |
| Min Operating Temperature | -55 °C |
| Military Standard | Not |
| Number of Terminals | 16 |
| Voltage Rating | 50 V |
| Tolerance | 5 % |
| Height | 558.8 µm |
| Termination | Convex |
| Working Voltage | 50 V |
| Voltage Rating (AC) | 50 V |
| Temperature Coefficient | 200 ppm/°C |
| Voltage Rating (DC) | 50 V |
| Length | 3.9878 mm |
| Packaging | Reel |
| Mount | SMD/SMT |
| Resistance | 100 Ω |
| Number of Contacts | 16 |
| Case Code (Imperial) | 0616 |
| Depth | 1.6 mm |
| Max Operating Temperature | 155 °C |
| Number of Pins | 16 |
| Width | 1.6002 mm |
| Case Code (Metric) | 1640 |
| Case/Package | 0616 |
| REACH SVHC | Unknown |
| Circuit Type | Isolated |
| Height - Seated (Max) | 0.55 mm |
| RoHS | Compliant |
Stock: 17687
Distributors
pcbx
pcbxUnit Price$0.10601
Ext.Price$0.10601
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.10601 | $0.10601 |
| 10 | $0.06763 | $0.67630 |
| 50 | $0.05483 | $2.74150 |
| 100 | $0.04446 | $4.44600 |
| 500 | $0.03445 | $17.22500 |
| 1000 | $0.03001 | $30.01000 |
| 3000 | $0.02704 | $81.12000 |
| 5000 | $0.02436 | $121.80000 |
| 10000 | $0.02257 | $225.70000 |
