Budget-Friendly PCB Prototyping Solutions for Urban IoT Sensor Nodes

Smart city sensor networks depend on a large number of sensor nodes deployed in the environment, traffic, and energy monitoring domains to provide useful information for urban applications, which requires the necessity of rapid hardware updates for the adaptation to the complex urban outdoor environment. Traditional high precision PCB prototyping is cost-intensive, representing a financial blocker for startups, university research labs and small in-house R&D teams and slowing sensor testing and field validation. Fabrication of basic hardware using low cost PCB methods is a critical balance of cost, time, and reliability, which is crucial for iterative development of urban sensors. This article thoroughly explores the mainstream low cost prototyping solutions, provides a typical range of costs and offers specific PCB design optimization guidelines tailored to smart city sensor hardware.

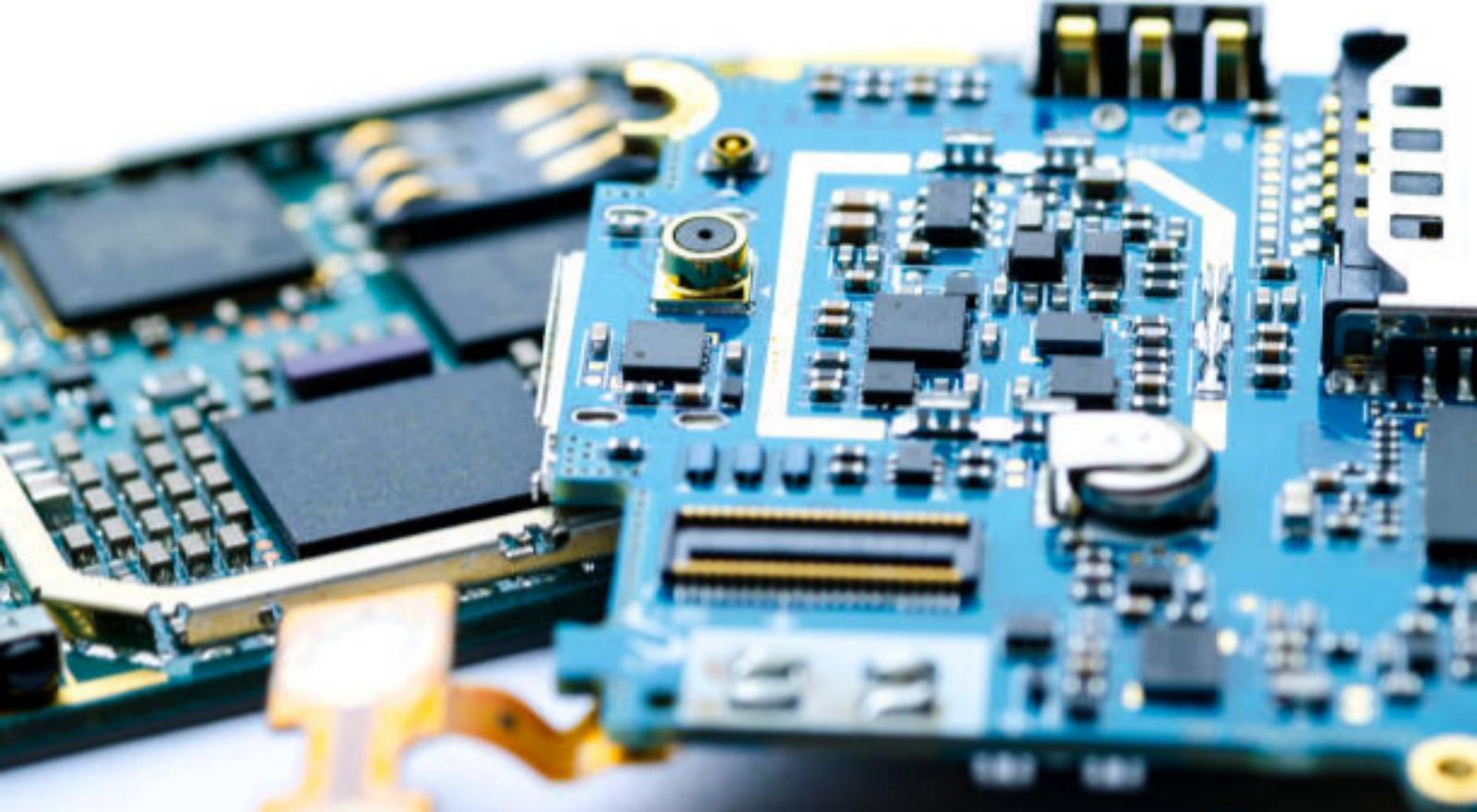

Core Drivers of Low-Cost Prototyping for Urban Sensors

Smart city sensors have special hardware requirements that influence design priorities for PCB prototype: Most use a battery or limited energy harvesting system, must be compact enough to mount in street lights, manhole covers, and building facades and must be frequently redesigned for electromagnetic interference, extreme temperature, and outdoor dust and moisture. Prototype runs typically have 5-10 circuit boards as compared with mass production runs. Premium rapid manufacturing services can deliver a standard 10cmx10cm 2-layer PCB for $10 to $50, or more than $100 for multi-layer boards designed for use with RF wireless sensors for LoRa or NB-IoT communication. If there are no low-cost prototyping processes to rapidly evaluate and test designs, the performance of these sensors may be unstable in the actual urban environment, and no small engineering team would be able to afford to make multiple rounds of design changes.

Main Low-Cost Prototyping Solutions

DIY Chemical Etching for Early Concept Verification

For simple low frequency sensors like stand alone temperature and air humidity sensors, DIY chemical etching is still the cheapest in-house prototyping technique. Using free open source PCB design software, engineers draw and place all the components and traces on a schematic drawing, then print them out in reverse on thermal transfer paper, and transfer the pattern to a blank FR-4 copper-clad board. The copper foil is etched with Ferric chloride solution to create signal tracks and then manually drilled and simple tin plated. No minimum order quantities and total raw material costs under $3 per single-layer board. Nevertheless, this manual technique can only be used for single or simple double-layer boards and works with tolerances of free trace widths, incompatible with high frequency wireless circuits that require tight impedance control. It is only used for preliminary checks for lab logics and then sent to outsourced professional fabrication.

Standard Single/Double-Layer Outsourced Prototyping

This is an outsourced process that is the most common solution for mid-stage prototypes for small-scale field testing. To reduce manufacturing expenses, manufacturers limit the number of parameters involved in the manufacturing process: they ensure that the line width and the line spacing above 0.2mm. They prefer to use universal through-hole components to facilitate manual assembly, and standard FR-4 glass substrates rather than expensive high frequency laminates. The smaller the test batch, the lower the unit cost, at $1-2/2-layer board. For urgent projects, boards can be processed quickly within 24-48 hours, although rush processing fee will be charged. Basic two-layer PCBs meet the requirements of most stand-alone environmental monitoring sensors and low volume 4-6 layer will be used to meet the requirements of multi-signal fusion traffic sensors, using dedicated ground planes to suppress urban electrical noise. Flexible PCBs are low cost (at least $30 per unit) when deployed in unusual environments, yet can be fitted in tight, irregular environments to satisfy the requirements of sensors.

Breadboard Perforated Board Rapid Validation

There is no need to make any custom PCBs for initial debugging on the breadboard grid. Microcontroller, sensor chip, and communication modules are connected to each other by hand, on a standardized two and a half-fourths inch hole grid, allowing engineers to finish functional circuit assembly in a matter of hours. This technique has no lead time and no manufacturing cost, and is ideal for quickly verifying the stability of the power supply and the extraction logic of raw sensor data. It has one big disadvantage: unregulated, disorganized wiring that results in poor anti-interference performance, meaning it can't be used over a long period of time in the field and can only be temporarily used in the lab.

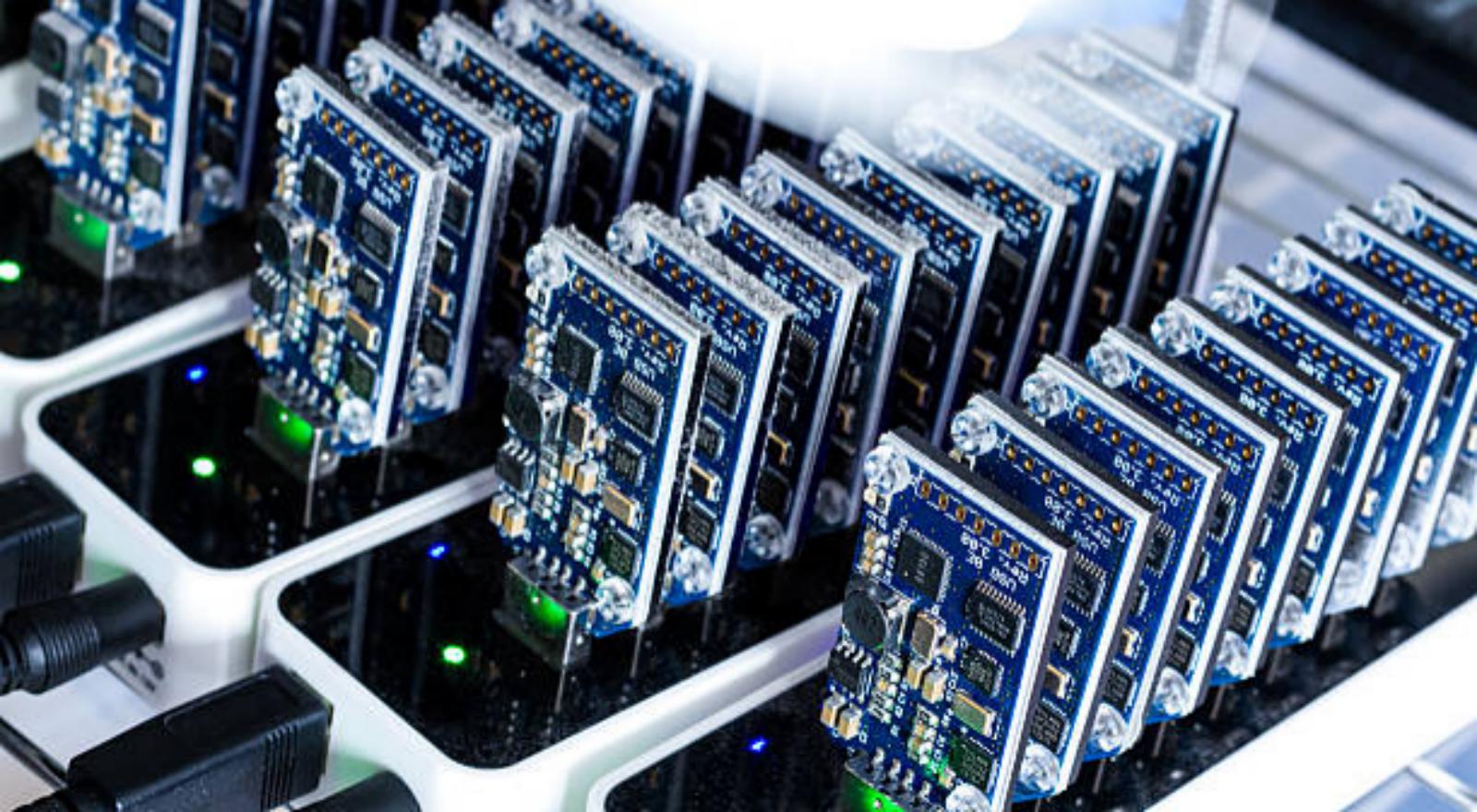

Reduce Prototyping Costs with Design Optimization Strategies

Five actionable design rules greatly minimize repeated fabrication costs and reduce failure rates:

Perform complete circuit and signal integrity testing prior to sending out the PCB design for manufacturing to remove basic design errors and prevent the cost of duplicate prototype orders.

Use all in one sensor components and through-hole packaged components to the maximum extent possible to ease manufacturing and reduce manual labor in assembly.

Place plenty of test points throughout power, signal, and communication circuits to facilitate post-fabrication testing and reduce redesigns.

Use 3.3V low-power logic instead of 5V options, to match battery powered smart city sensor hardware and reduce power trace sizing.

Design PCB layouts around modules, separating sensor acquisition, power management, and wireless communication modules, so that revisions can be made to modules that are failing without having to rework the entire board by iteration.

Balancing Speed, Cost and Performance

To get the most out of your budget, teams can follow a staged prototyping process: use a perforated prototype board for rapid early prototyping and logic testing, go with DIY etching for testing of simpler low-frequency circuits and use low-cost single/double-layer prototype boards that are outsourced for formal field trial hardware. The multi-functional wireless sensors with complex requirements, which involve dense miniaturized wiring, can choose to adopt the lightweight modified semi-additive process, where the fine trace geometry does not come with the high manufacturing cost of industrial high-precision processes. Engineers should plan project schedules with buffer time to prevent the need to order rush parts and, when possible, use standard economical turnaround plans.

PCB prototyping solutions are inexpensive enough to allow for smart city sensor innovation without prohibitive cost, and continuous, iterative sensor hardware upgrades to monitor the environment, traffic, and energy without consuming precious research and development dollars. Providing a range of suitable prototyping methods for distinct phases of development, and optimizing PCB designs with simplified low-cost manufacturing requirements can help small engineering teams deploy urban sensors quickly and reliably and pave a path to more interconnected, responsive smart city infrastructure. To support smart city sensor terminal operationally stable, cost-effective and low-layer PCB prototypes, PCBX offers low minimum orders of quantity, quick-turn fabrication, transparent pricing and streamlined pricing for low layer PCB prototypes for sensor R&D teams.
