Creepage and Clearance in High-Voltage PCB Design

Creepage distance and clearance distance are two basic design parameters that are critical in high‑voltage printed circuit board (PCB) systems for ensuring electrical safety, insulation reliability and long service life. The two quantifiers are the minimum spatial distance between conductive parts that are at different voltage potentials from each other such that air breakdown, surface tracking, arcing, flashover and insulation failure are prevented. Proper creepage and clearance design is essential for meeting global safety standards as well as for reliable operation in harsh environments in industrial power supplies, automotive power modules, renewable energy converters and high-voltage measurement devices. This article will methodically cover the definitions, influencing factors, industry requirements, practical design guidelines, common challenges and engineering solutions for creepage and clearance, so that designers can produce safe, reliable and manufacturable high-voltage PCB designs.

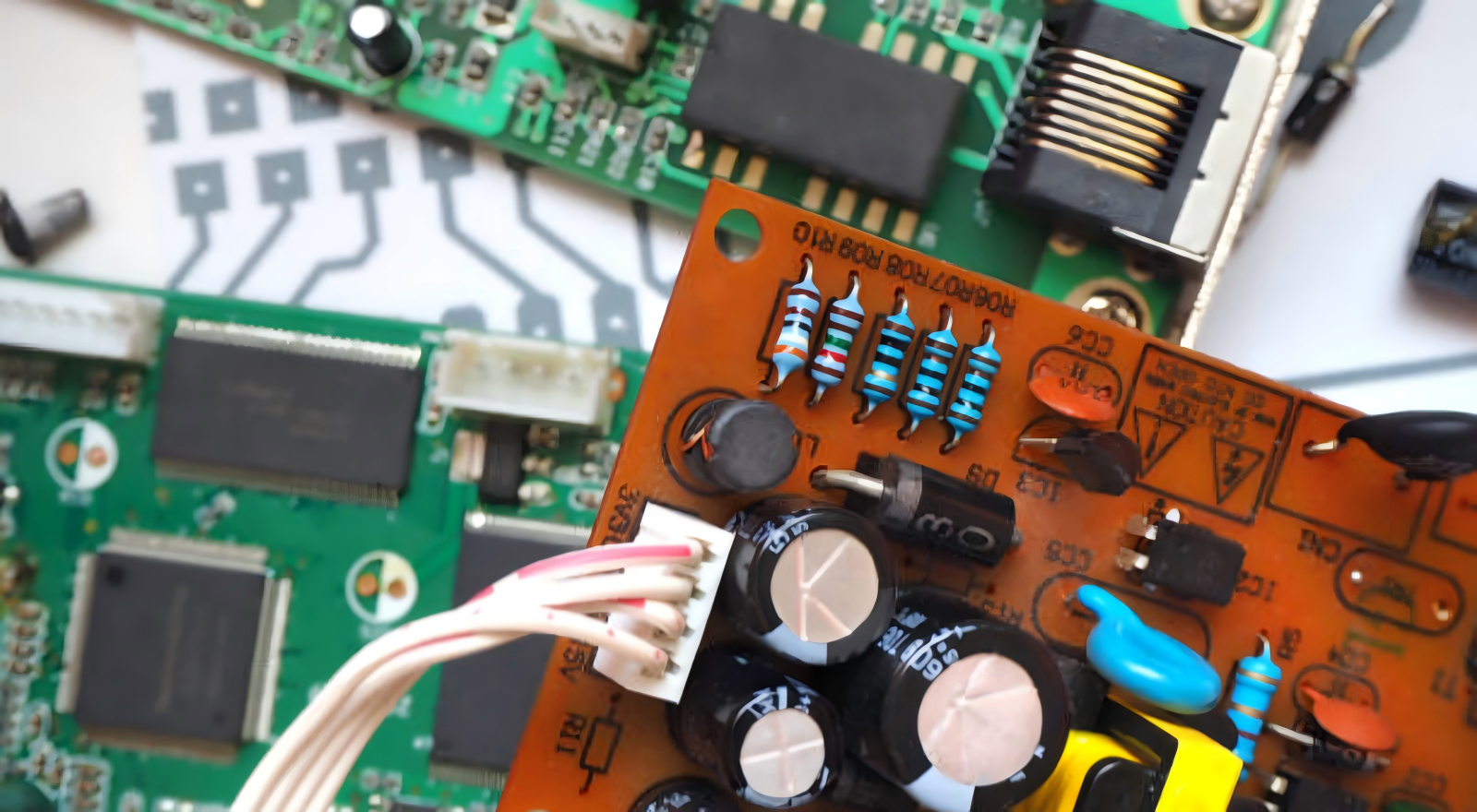

Core Concepts: Clearance and Creepage

Clearance is the shortest straight line distance through air between two conductive parts. Avoids air breakdown and arcing due to high electric field strength. Clearance is affected by voltage, humidity and altitude. Typical clearances for a 1000V DC circuit under normal atmospheric conditions are approximately 8 mm.

The shortest path on the surface of the PCB substrate between conductive elements is called creepage. It is immune to surface tracking due to dust, moisture, flux residue, or corrosion. Under high voltage, contaminants can develop into weak conductive layers that can produce permanent carbonized contacts. Typically, creepage is greater than clearance. In case of a 500 V system, creepage may be required to be 6.4 mm or more, depending on the material and environment.

Key Factors Determining Creepage and Clearance Requirements

The minimum creepage and clearance values are not fixed values. The factors that determine them are voltage stress, environment, material characteristics, and application safety levels.

Operating Voltage and Overvoltage Category

Larger insulation spacing is necessary for higher working voltage, peak voltage and impulse surge. The design margin should account for transient overvoltages due to lightning, switching or load changes.

Pollution Degree

The world recognizes four pollution levels:There are international standards for environments which are divided into four pollution degrees: In clean indoor enviroments (Pollution Degree 1), the creepage distances are much shorter than in industrial or humid enviroments (Pollution Degree 2 – 3), where they are much longer to limit tracking due to contamination.

Substrate Material and CTI

The Comparative Tracking Index (CTI) is an indication of a material's ability to resist surface tracking. Materials are classified according to their CTI values into Groups I–IIIb. Higher-CTI materials can be used with smaller creepage distances at a given voltage stress. The commonly used FR‑4 for general high voltage use has a CTI of 400 or higher.

Altitude Correction

The density of air and the strength of the dielectrics both decrease with altitude. Above 3000 m, the clearance of the equipment typically has to be increased to provide the same insulation levels.

Insulation Type

The minimum spacing corresponds to basic insulation, supplementary insulation, double insulation and reinforced insulation. The largest creepage and clearance is needed for reinforced insulation in safety critical applications.

Industry Standards: IPC‑2221 and IEC Series

Designs are mature and are in line with internationally agreed standards for consistent safety performance.

IPC‑2221 is the universal PCB design code that offers straightforward tables for creepage and clearance according to voltage, coating and environment. It generally gives 10mm creepage and 8 mm clearance for 1000 V and Pollution Degree 2 and Group II material.

Insulation coordination for low and medium voltage systems is covered by IEC 60664‑1. IEC 62368-1 is adopted by many for the safety certification of audio-visual, IT and communication equipment. The most severe standards that apply should be used by designers for market compliance.

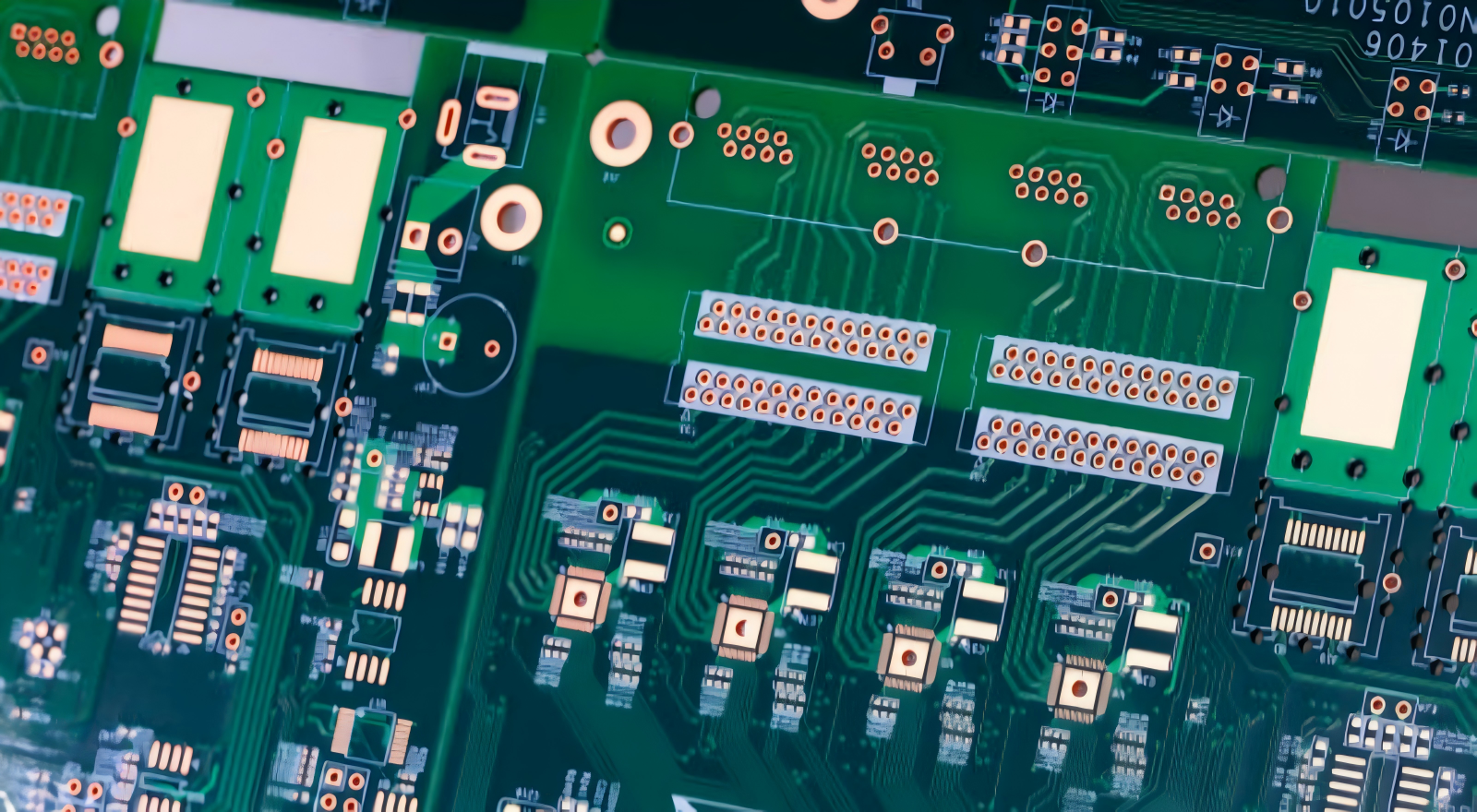

Practical Design Rules for High‑Voltage PCBs

To balance safety, layout density and manufacturability, the following rules are based on standard requirements and engineering experience.

Define voltage stress and environment first

Check maximum operating voltage, transient surge and worst case pollution and altitude. All spacing calculations are to be based on these conditions.

Choose high-CTI substrate materials

Choose substrates that have good tracking resistance to minimize creepage needs and enhance reliability.

Use slots and barriers to extend creepage

In situations where there is limited board space, spaces between the high-voltage traces can provide a long path of surface routing with minimal board area. The effective creepage distance can be increased by several millimeters by adding a narrow slot.

Optimize component placement and partitioning

Physically separate high voltage and low voltage areas. Avoid sharp corners and narrow gaps that cause electric‑field concentration. Ensure adequate separation between high voltage pins and copper.

Apply conformal coating properly

Coating can be used to achieve better surface insulation and/or reduced creepage in some circumstances. But it can not be used to replace the minimum spacing required by standards, and the process defects must be avoided.

Verify with automatic design tools and testing

Make use of PCB design software that allows for the enforcement of creepage / clearance rules during design layout. Following the fabrications perform hipot (high potential) and dielectric withstand testing to confirm insulation performance.

The two fundamental aspects of safely and robustly designing high voltage PCBs are creepage and clearance. They bridge electrical theory, material science, environmental adaptability, and industrial certification. If applied correctly, these parameters help prevent arcing, tracking, short circuit and fire hazards, and ensure products adhere to global safety standards and perform their required functions throughout their life span.
